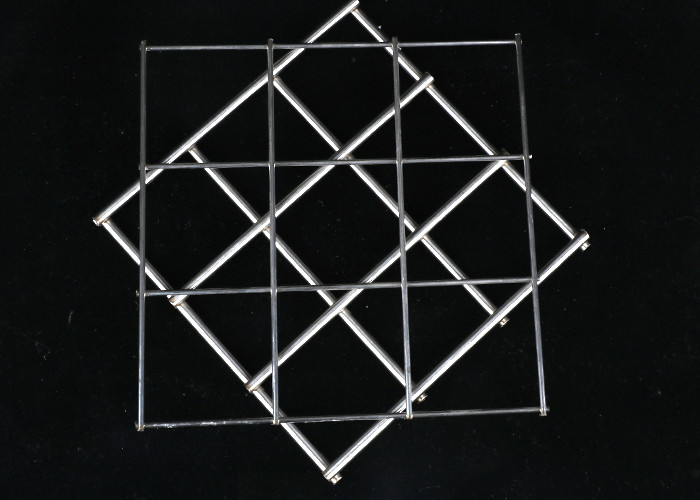

304 316 316L/Square Hole Stainless Steel Welded Wire Mesh Panel
Product Descript

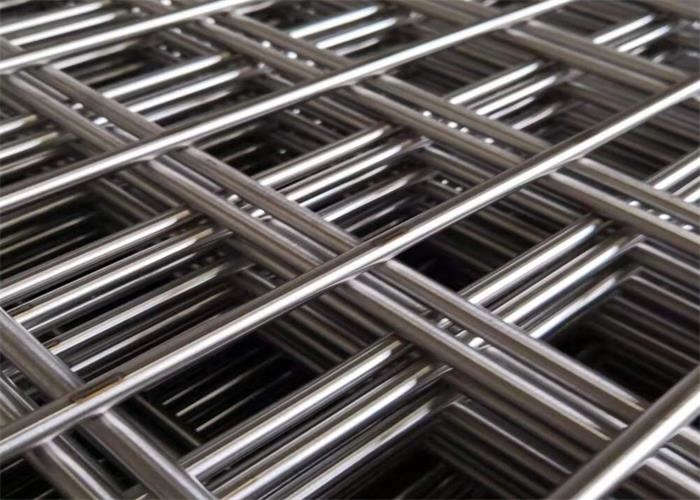

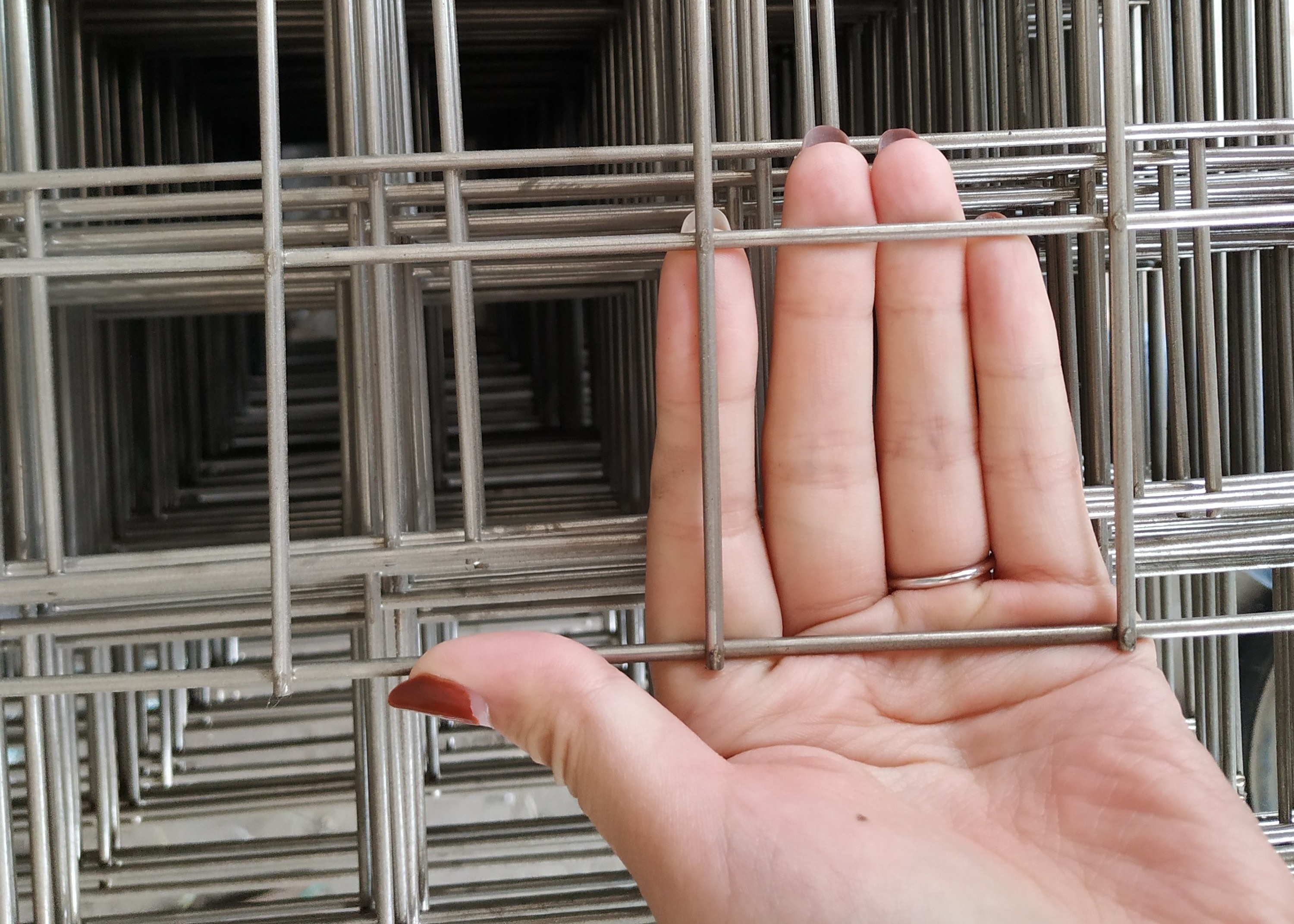

Welded wire panel is made of high quality steel wire through
automatic process and sophisticated welding technique,
laidhorizontally and vertically. The finished products is strong
welding, insistence and flat with sturdy structure.
1.Material: Low carbon steel wire;galvanized wire,PVC coated.
2.Feature:Corrosion resistance, aging resistance, sunshine
resistance and weather resistance.
3.Welding Type: Electro galvanized before welded wire mesh ,Electro
galvanized after welded wire mesh,hot dip galvanized before welded
wire mesh ,hot dip galvanized after welded wire mesh ,PVC coated
welded wire mesh.
| Material | Low carbon steel wire Q195, Q235 |
| Surface | Black wire, re-drawing wire, electroc galvanized, hot dipped
galvanized wire, electro galvanized after welding, hot dipped
galvanized after welding, PVC coated |
| Wire Diameter | 0.4mm-3mm |
| Hole (mesh) | 1/2'', 1'', 5/8'', 1/4'', 3/4'', 6/7'' (1''=25.4mm) |
| Length | 15m, 20m, 25m, 30m, 50m |
| Width | 3ft, 4ft, 90cm, 1.2m, 1.5m, 1.8m |
| Package | waterproof paper+plastic film |
Type 2: welded wire mesh panels
| Material | Low carbon steel wire Q195, Q235, stainless steel |
| Surface | Black wire, re-drawing wire, electroc galvanized, hot dipped
galvanized wire, electro galvanized after welding, hot dipped
galvanized after welding, PVC coated |
| Wire Diameter | 1mm-10mm |
| Hole (mesh) | 2.5-25cm |
| Length | ≤8m |
| Width | 0.5-3m |
| Package | pallet or nude packing
|
Specifications
| Material | Wire DIameter(mm) | Mesh Size(mm) | Width(M) | Length(M) |
| SS304 | 2 | 20 | 1 | 2 |
| SS304 | 2 | 50 | 1 | 2 |
| SS304 | 2.5 | 25 | 1 | 2 |
| SS304 | 2.5 | 30 | 1 | 2 |
| SS304 | 2.5 | 40 | 1 | 2 |
| SS304 | 2.5 | 50 | 1 | 2 |
| SS304 | 2.5 | 20 | 1 | 2 |
| SS304 | 3 | 40 | 1 | 2 |
| SS304 | 3 | 30 | 1 | 2 |
| SS304 | 3 | 25 | 1 | 2 |
| SS304 | 3 | 20 | 1 | 2 |
| SS304 | 3 | 50 | 1 | 2 |
| SS304 | 3 | 60 | 1 | 2 |
| SS304 | 4 | 30 | 1 | 2 |
| SS304 | 4 | 50 | 1 | 2 |
| SS304 | 4 | 60 | 1 | 2 |
| SS304 | 4 | 80 | 1 | 2 |
| SS304 | 4 | 100 | 1 | 2 |
| SS304 | 5 | 30 | 1 | 2 |
| SS304 | 5 | 40 | 1 | 2 |
| SS304 | 5 | 50 | 1 | 2 |
| SS304 | 6 | 50 | 1 | 2 |
| SS304 | 6 | 100 | 1 | 2 |
Features for stainless steel welded wire mesh:
* Extra long lifetime, lasting years longer than Galvanized Before
Weld products
* Extreme strength, durability and resistance to rust, corrosion
and harsh chemicals
* Lowest long-term cost of ownership in harsh conditions (higher
initial cost is offset by lower frequency of repair and
replacement)
* Ideal for hard-to-access areas where rust and corrosion are
factors
Q: Can I place an order for some samples?
A: Yes.Of course.
You can order some samples to check the quality
Q: What's your MOQ?
A: If the products you ordered is in stock,MOQ will be
flexible,otherwise,MOQ depend on your detailed specifications.
